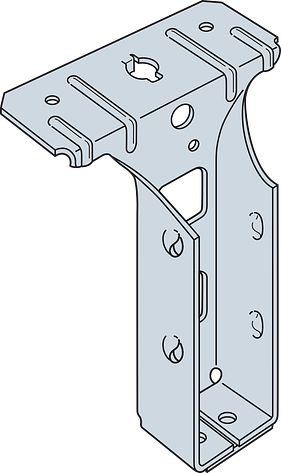

Simpson Strong Tie PFB Post-Frame Top-Flange Hanger, Bent
Simpson Strong-Tie
Item Details
The PFB top-flange hanger is for use in post-frame construction. It has dome-shaped joist nail holes that guide nails into the proper installation angle. The PFB features a folded seat that raises the 2x joist slightly above the seat radius to enable a tighter connection to the back of the hanger.
Key Features
- Solid one-piece top flange allows for accurate and fast installation
- Installation prongs make setting the hanger quick and easy
- The double-shear nailing design distributes the load throughout two points on each joist, providing greater strength with fewer nails
Material
- 20 gauge
Finish
- Galvanized
Installation
- Use all specified fasteners; see General Notes.
- 0.148" x 3" purlin nails must be driven at an angle through the purlin into the header. Combine with top nails to achieve table loads.
- 0.148" x 1 1/2" purlin nails must be driven at an angle into the purlin but do not penetrate into the header. Combine with back face fasteners and top nails to achieve table loads.
